MAIN APPLICATIONS
Low-medium pressure lines in extreme temperature conditions
(foundries, com-pressors, hydraulics within engine compartments, etc.)
CONTINUOUS SERVICE TEMPERATURE RANGE
-67°F / +275°F
-55°C / +135°C
MAX OPERATING TEMPERATURE
(Intermittent service) 300°F 150°C
RECOMMENDED FLUIDS
Mineral oils, glycols and polyglycols, transmission fluids, air with oil
vapours, mineral oils in aqueous emulsion
(up to 212°F 100°C)

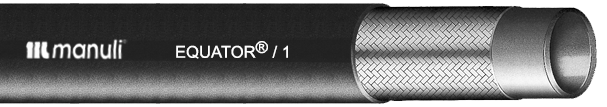

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One high tensile steel braid
COVER: Blue synthetic rubber with high ozone,
weather and heat resistance
APPLICABLE SPECS: Exceed EN 853 1SN – SAE
100 R1AT – ISO 1436-1 1SN/R1AT
TYPE APPROVALS: ABS, BV, BV MED (DN 6÷31),
DNV, GL, GOST-R, LR, MSHA
ATTENTION!
Compressed air applications require cover pin-pricking and additional safety devices
KEY PERFORMANCE
Wide range temperature resistance • EN/DIN pressure rating • Outstanding ozone resistance •
Superior weather and UV resistance
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| EQ1-04 | 6 | -4 | 1/4″ | – | – | 13.4 | 0.53 | 225 | 3260 | 1000 | 14500 | 100 | 3.94 | 240 | 16 | OPS | MF+M00120-04 |
| EQ1-05 | 8 | -5 | 5/16″ | – | – | 15.0 | 0.59 | 215 | 3110 | 900 | 13050 | 114 | 4.49 | 280 | 19 | – | MF+M00120-05 |
| EQ1-06 | 10 | -6 | 3/8″ | – | – | 17.3 | 0.68 | 180 | 2610 | 800 | 11600 | 127 | 5.00 | 340 | 23 | OPS | MF+M00120-06 |
| EQ1-08 | 12 | -8 | 1/2″ | – | – | 20.5 | 0.81 | 160 | 2320 | 680 | 9860 | 178 | 7.01 | 435 | 29 | OPS | MF+M00120-08 |
| EQ1-10 | 16 | -10 | 5/8″ | – | – | 23.5 | 0.93 | 130 | 1880 | 600 | 8700 | 200 | 7.87 | 505 | 34 | OPS | MF+M00120-10 |
| EQ1-12 | 19 | -12 | 3/4″ | – | – | 27.7 | 1.09 | 105 | 1520 | 500 | 7250 | 240 | 9.45 | 645 | 43 | OPS | MF+M00120-12 |
| EQ1-16 | 25 | -16 | 1″ | – | – | 35.8 | 1.41 | 88 | 1270 | 360 | 5220 | 300 | 11.81 | 980 | 66 | OPS | MF+M00120-16 |
| EQ1-20 | 31 | -20 | 1-1/4″ | – | – | 43.5 | 1.71 | 65 | 940 | 345 | 5000 | 420 | 16.54 | 1305 | 87 | OPS|OPNS | MF+M00120-20 |
| EQ1-24 | 38 | -24 | 1-1/2″ | – | – | 50.0 | 1.97 | 50 | 720 | 290 | 4200 | 500 | 19.69 | 1550 | 104 | OPS|OPNS | MF+M00120-24 |
| EQ1-32 | 51 | -32 | 2″ | – | – | 63.1 | 2.48 | 40 | 580 | 250 | 3620 | 630 | 24.80 | 2250 | 151 | OPS|OPNS | MF+M00120-32 |
