MAIN APPLICATIONS
Heavy duty power lines, hydrostatic transmissions, in heavy
duty environmental conditions, specific installa-tions with
severe abrasion conditions, marine applications,
underground and open pit mining
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
MAX. OPERATING TEMPERATURE
(Intermittent service) 257°F / 125°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up
to 212°F 100°C), glycols and polyglycols, mineral oils in
aqueous emulsion, water

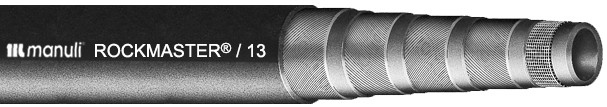

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals (DN 6÷31). Six high tensile steel spirals (DN 38÷51)
COVER: Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS: Exceed EN 856 R13 –
SAE 100 R13 – ISO 3862-1 R13
TYPE APPROVALS: ABS (DN 19÷51), BV (DN 19÷51), BV MED (DN 19÷51), FRAS, GOST-R, LOBA, RINA (DN 38÷51), (DN 19÷51), MSHA
KEY PERFORMANCE
Approved at 1.000.000 flexing impulse cycles (MF2000® fittings) – Superior abrasion resistance –
High ozone and weather resistance – Flame resistance to a wide range of spec. – Antistatic and
antitoxic cover – biological and mineral oils compatibility
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| R13-12 | 19 | -12 | 3/4″ | – | – | 31.8 | 1.25 | 350 | 5070 | 1950 | 28270 | 240 | 9.45 | 1620 | 109 | OPS | IL+M01300-12 |
| R13-16 | 25 | -16 | 1″ | – | – | 39.2 | 1.54 | 350 | 5070 | 1650 | 23920 | 300 | 11.81 | 2195 | 147 | OPS | IL+M01300-16 |
| R13-20 | 31 | -20 | 1-1/4″ | – | – | 48.8 | 1.92 | 350 | 5070 | 1500 | 21750 | 420 | 16.50 | 3285 | 221 | OPS | IL+M01300-20 |
| R13-24 | 38 | -24 | 1-1/2″ | – | – | 57.5 | 2.26 | 350 | 5070 | 1600 | 23200 | 500 | 19.69 | 4720 | 317 | OPS | IL+M01300-24 |
| R13-32 | 51 | -32 | 2″ | – | – | 72.0 | 2.83 | 350 | 5070 | 1500 | 21750 | 630 | 24.80 | 6825 | 457 | OPS | IL+M01300-32 |
