MAIN APPLICATIONS
Medium-high pressure lines
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
MAX. OPERATING TEMPERATURE
(Intermittent service) 250°F / 121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

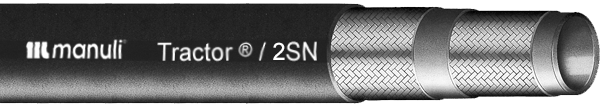

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two high tensile steel braid
COVER: Environment resistant synthetic rubber
APPLICABLE SPECS: EN 853 2SN – SAE 100 R2AT – ISO 1436 2SN/R2AT
TYPE APPROVALS: ABS, BV (DN 5÷51), DNV, GL, GOST-R, KSR, LR, MSHA
KEY PERFORMANCE
EN/DIN rated working pressure – Smooth cover FRAS approved (DN 5÷12)
 |
 |
 |
 |
 |
 |
 |
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| T2SN-03 | 5 | -3 | 3/16″ | 11.3 | 0.44 | 13.3 | 0.52 | 415 | 6010 | 1650 | 23920 | 89 | 3.50 | 315 | 0.21 | – | MF+M03400-03 |
| T2SN-04 | 6 | -4 | 1/4″ | 12.7 | 0.50 | 14.7 | 0.58 | 400 | 5800 | 1600 | 23200 | 100 | 3.94 | 370 | 0.25 | OPB | MF+M03400-04 |
| T2SN-05 | 8 | -5 | 5/16″ | 14.3 | 0.56 | 16.3 | 0.64 | 350 | 5070 | 1400 | 20300 | 114 | 4.49 | 410 | 0.28 | OPB | MF+M03400-05 |
| T2SN-06 | 10 | -6 | 3/8″ | 16.7 | 0.66 | 18.7 | 0.74 | 330 | 4780 | 1320 | 19140 | 127 | 5.00 | 530 | 0.36 | OPB|OPNS | MF+M03400-06 |
| T2SN-08 | 12 | -8 | 1/2″ | 19.8 | 0.78 | 21.8 | 0.86 | 275 | 3980 | 1100 | 15950 | 178 | 7.01 | 620 | 0.42 | OPB|OPNS | MF+M03400-08 |
| T2SN-10 | 16 | -10 | 5/8″ | 23.0 | 0.91 | 25.0 | 0.98 | 250 | 3620 | 1000 | 14500 | 200 | 7.87 | 720 | 0.48 | OPB|OPNS | MF+M03400-10 |
| T2SN-12 | 19 | -12 | 3/4″ | 27.0 | 1.06 | 29.0 | 1.14 | 215 | 3110 | 860 | 12470 | 240 | 9.45 | 940 | 0.63 | OPB|OPNS | MF+M03400-12 |
| T2SN-16 | 25 | -16 | 1″ | 34.8 | 1.37 | 36.8 | 1.45 | 165 | 2390 | 660 | 9570 | 300 | 11.81 | 1290 | 0.87 | OPB|OPNS | MF+M03400-16 |
| T2SN-20 | 31 | -20 | 1-1/4″ | 44.3 | 1.74 | 47.0 | 1.85 | 125 | 1810 | 500 | 7250 | 419 | 16.50 | 1910 | 1.28 | OPNS | MF+M03400-20 |
| T2SN-24 | 38 | -24 | 1-1/2″ | 50.7 | 2.00 | 53.4 | 2.10 | 90 | 1300 | 360 | 5220 | 500 | 19.69 | 2250 | 1.51 | OPNS | MF+M03400-24 |
| T2SN-32 | 51 | -32 | 2″ | 63.5 | 2.50 | 66.2 | 2.61 | 80 | 1160 | 320 | 4640 | 630 | 24.80 | 2900 | 1.95 | OPNS | MF+M03400-32 |
